Electric Tunnel Thruster CT 165

Place Order

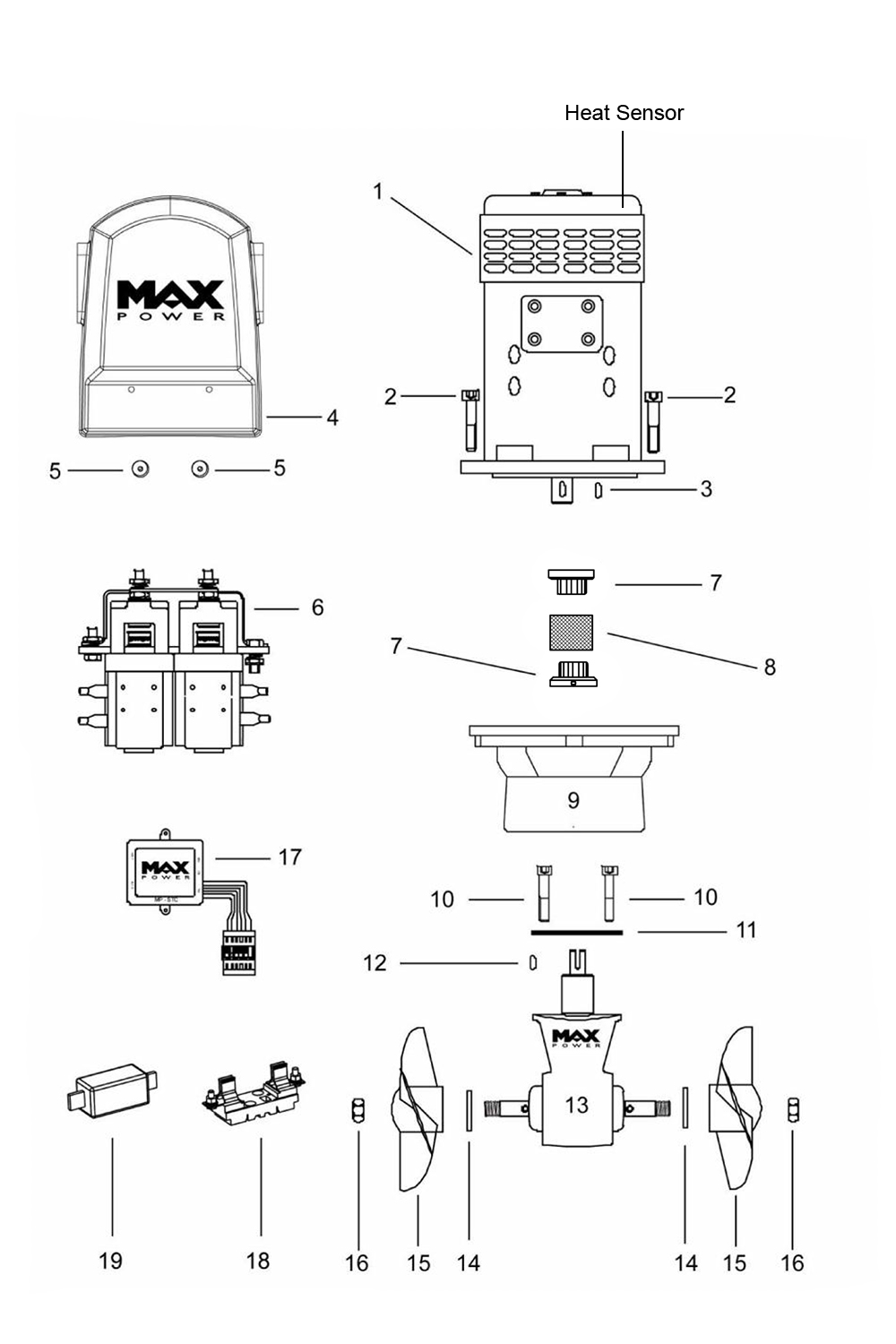

[310252] Leg Gasket

[310368] Motor Support

[311366] Heat Sensor

[312039] MAXPOWER PLASTIC NUT M5

[312059] Propeller Pin

[312870] Electric Motor CT165

[312922] Relay 24V

[313735] Motor Relay Cover

[315310] Electronic Controller

[315321] Composite Leg CT225 (includes No. 10,11,14,16 )

[35017] Fuse Holder T1

[35027] Fuse 250A

[35042] MAX POWER PROPELLER Ø250

[630487] Coupling Motor Side

[631312] Key 6X6X15, DIN 6885 - UNI 6604 - ISO 773, AISI 316

[633743] Rubber Coupling

The 24V CT165 is ideally suited to motor boats and deep footed sailing yachts ranging from 40’-65’. Manufactured using composite materials, this model has twin propellers, a 250mm diameter tunnel and a thrust rating up to 185/407 (kg/lbs).

This model integrates all the unique features of the Max Power electric tunnel thrusters range, ensuring a long and maintenance free lifespan.

• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
