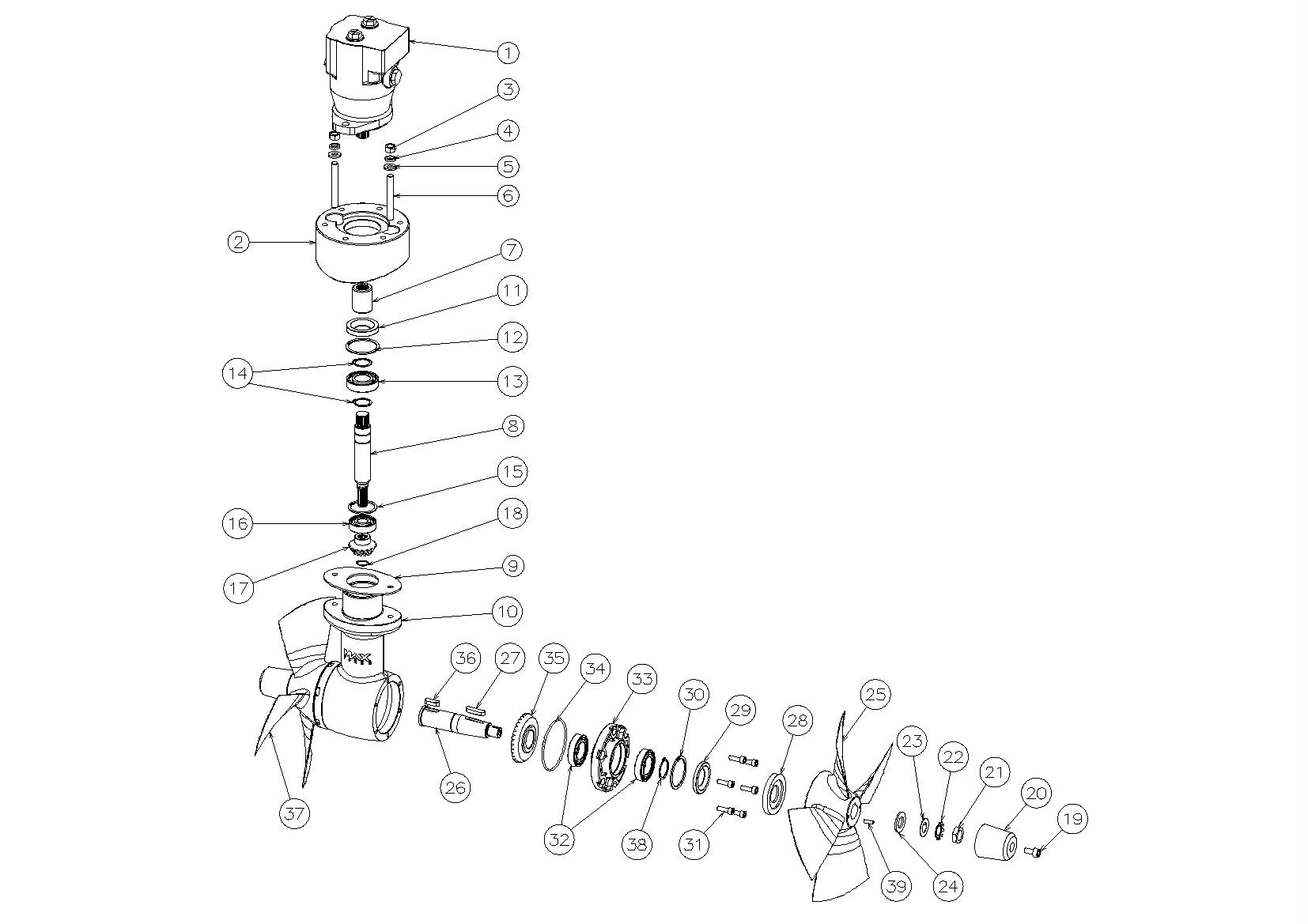

Hydraulic Tunnel Thruster CT HYD 550

Place Order

[313365] COUPLING

[630859] SEAL 30-62-7

[631744] BEARING 6007 2RS #380

[631753] BEARING 6206 2Z #453

[634578] O RING NB70, OR 4375, Int.D=94,84mm, Cord.D=3,53mm, BS (EN) 240

[635232] CIRCLIP 62 DIN472 #1240

[635425] CIRCLIP 30 DIN 471 X39 CrMo171

[636131] Bearing 6304 2RS

[636136] Circlip 19 DIN 471 Steel

[636138] ANODE

[636140] Washer lock MB4 M20 A4

[636141] Nut hexagon DIN936 Μ20x1,5 A4

[636142] Washer NFE25514 20x40x3 M20 A4

[636218] DRIVELEG

[636219] COVER

[636220] MOTOR SUPPORT

[636222] Washer internal tab DIN462 M20 A4

[636235] SEAL shield

[636236] GASKET

[636237] PROPELLER SHAFT

[636238] GEAR

[636239] PINION

[636241] MOTOR SHAFT

[636242] PROPELLER LH

[636243] PROPELLER RH

[636278] MOTOR

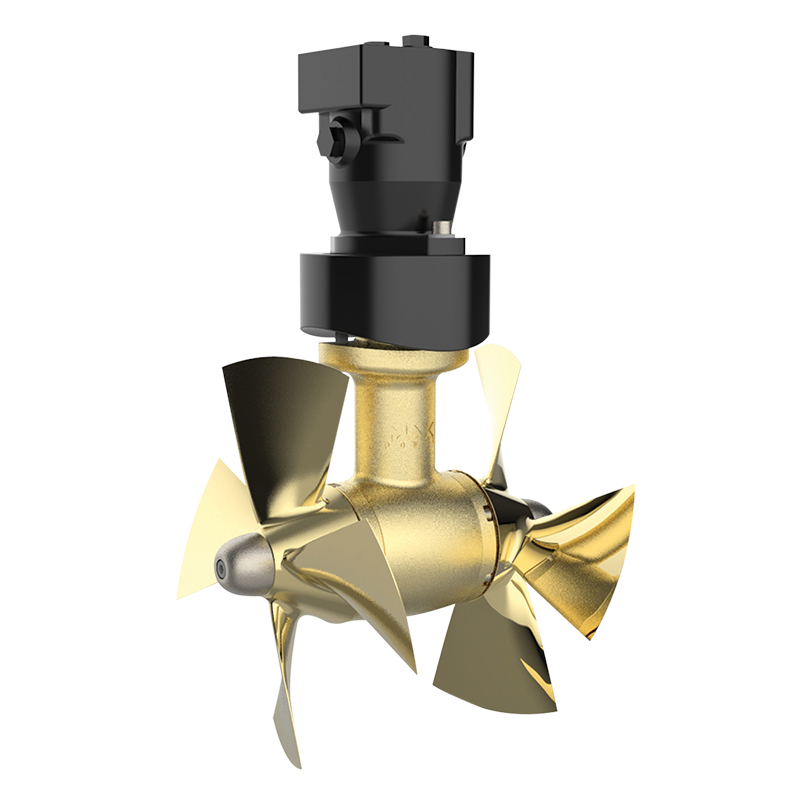

CT 550 HYD is an ideal tunnel thruster for boats up to 42 m. All immersed parts have a specially designed hydrodynamic profile to avoid any turbulence. The most powerful tunnel thruster in the D400 tunnel category comes with 4 blade metallic propellers designed by MAX POWER, to guarantee maximum thrust performance. Counter rotating system offers higher efficiency on thrusting with left side and right side pitch propellers in order to have identical performance in both directions.

Get in touch

Code	Description	Thruster Power (kw)	Motor displacement (cc)	Tunnel diameter (mm)	Pressure (BAR)	Flow (LPM)	Propellers	Weight	Light Duty Thrust (Kgf)	Heavy Duty Thrust (Kgf)	Application (Boat Size - m)	A	B	C	D
	MAX POWER THRUSTER CT550 HYD DUO CLASSIC Ø400	Min 46 - Max 49	47.10	400	Min 200 - Max 210	140	Four Blade, DUO Counter Rotating	65	630	560	19-42	180mm	378mm	249mm	375mm

3D Models

3D Models - CT550

Technical Drawings

CT550 GENERAL DIMENSIONS

Installation Manuals

Installation Manuals - CT550

Data Sheets

CT550 PRODUCT DATA SHEET

Spare Parts Diagrams

CT550 SPARE PARTS
