Electric Retractable Thruster VIP 250 ELECTRIC

Place Order

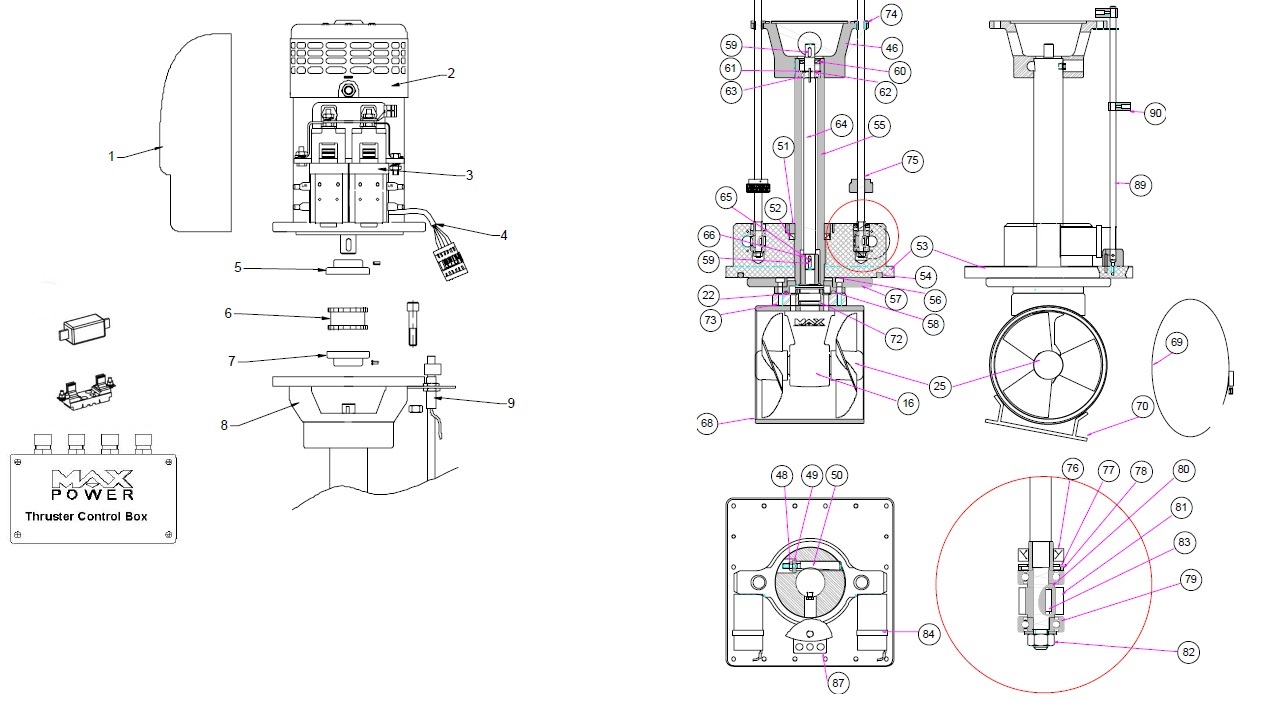

[310133] END FLOAT SPACER

[310136] WATER GLAND RETAINING RING

[310162] Position Detector

[310230] SEAL

[310232] Drive Shaft Oil Seal

[310251] SHAFT PLATE O RING

[310263] WATER GLAND

[310338] Shaft Bearing

[310346] SCREW BEARING

[310356] WASHER

[310359] WHEEL

[311351] Position Switch Holder

[311358] Position Detector Rod

[312008] CIRCLIP

[312011] CIRCLIP

[312012] CIRCLIP

[312016] DRIVE SCREW KEY

[312018] SHAFT KEY

[312047] Drive Nut

[312787] Proximity Switch for UP/DOWN Stop

[312860] Electric Motor CT225

[312871] Electric Truster Motor 24V

[312861] Electric Motor 12V

[312864] Electric Motor 24V

[312922] Relay 24V

[315329] Complete Thruster Relay 24V

[312950] MAXPOWER ELECTRONIC CONTROLLER VIP/R200

[636820] MAXPOWER ELECTRONIC CONTROLLER VIP R200 24V

[313714] Motor Support

[313735] Motor Relay Cover

[315321] Composite Leg CT225 (includes No. 10,11,14,16 )

[35017] Fuse Holder T1

[35018] Fuse Holder T2

[35020] Fuse CT125 24V 200A

[35027] Fuse 250A

[35042] MAX POWER PROPELLER Ø250

[630487] Coupling Motor Side

[633743] Rubber Coupling

[633746] Coupling Drive Leg Side

[635623] Sliding Shaft Plate

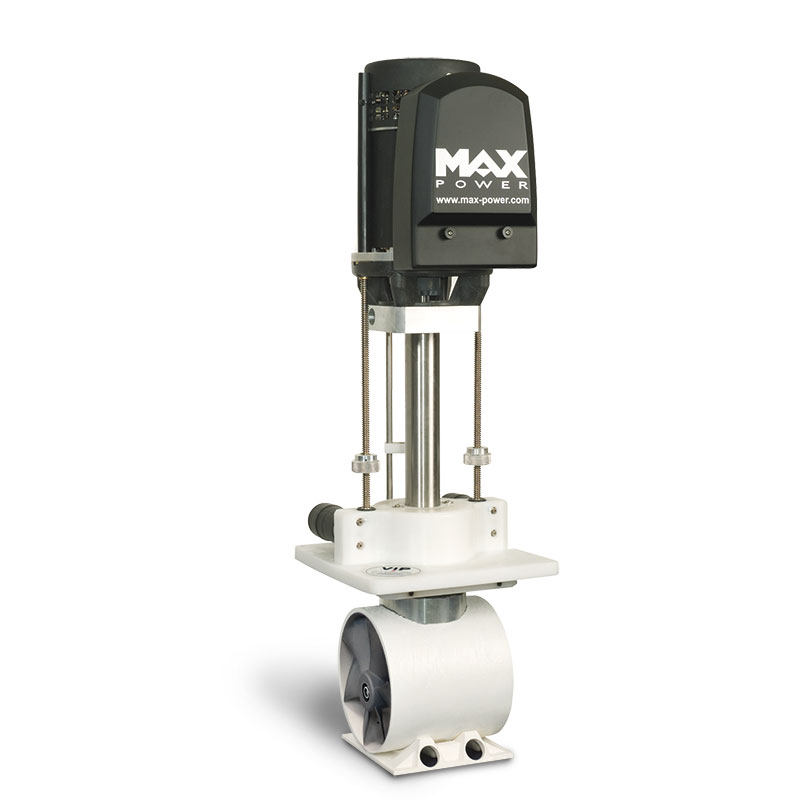

These vertically retracting VIP thrusters use a unique and patented thrust plate design. The VIP 250, is available in 24V and 48V and is ideally suited to high-performance sailing yachts and super fast motor yachts 40’-60’.

Get in touch

Code	Description	Voltage	Thrust	Propellers	Power	Weight	A	B	C	D	E	F
	MAX POWER Elec. Retractable thruster VIP250 9.5KW 24V	24V	145(kg) / 319(lbs)	2	9.5(kw) / 12.74(hp)	54 (kg)	360 (mm)	360 (mm)	765 (mm)	250 (mm)	1075 (mm)	295 (mm)
601009	MAX POWER Elec. Retractable thruster VIP250 9.5KW 48V	48V	145(kg) / 319(lbs)	2	9.5(kw) / 12.74(hp)	54 (kg)	360 (mm)	360 (mm)	765 (mm)	250 (mm)	1075 (mm)	295 (mm)
	MAXPOWER Retractable Thruster VIP250 15KW 24V	24V	250(kg) / 550(lbs)	2	15(kw) / 20(hp)	65 (kg)	360 (mm)	360 (mm)	765 (mm)	250 (mm)	1075 (mm)	295 (mm)

Installation Manuals

3D Models

Data Sheets

Data Sheet_VIP 250
