The HYD 325/325 is designed for motor boats and deep footed sailing yachts ranging from 52’-90’. The largest in the hydraulic tunnel thruster range, this twin propeller model has a 185mm diameter tunnel and is available in bronze only. Two different power options offer a thrust rating of up to 250/550 (kg/lbs) or 275/606(kg/lbs).

* Several versions of each model are available.  Please consult your local Max Power distributor.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Only available with bronze driveleg

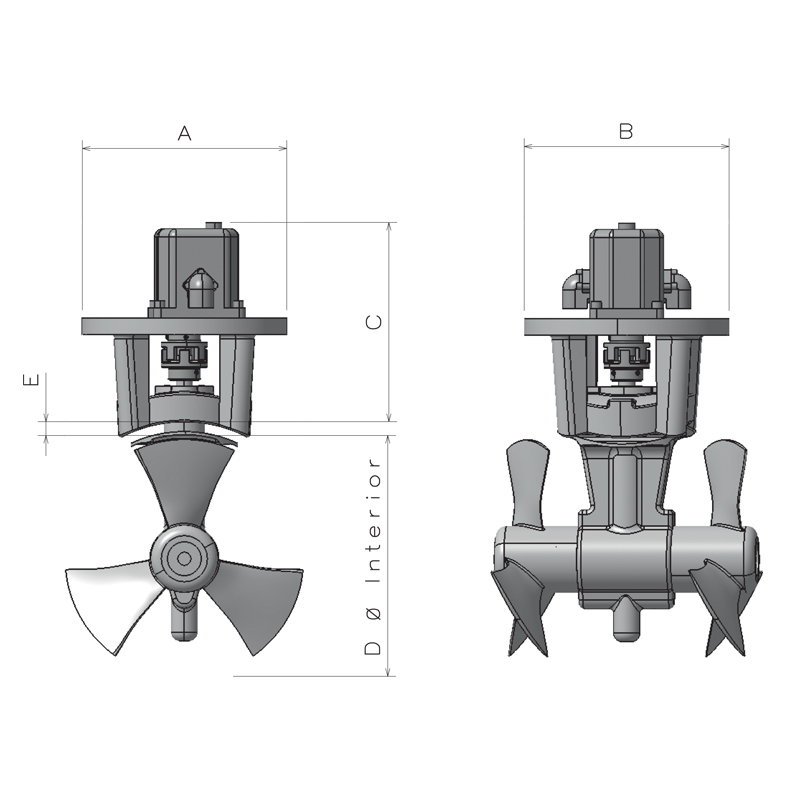

Code Thrust Propellers Power Weight A B C D E
317598 275(kg) / 551(lbs) 2 14(kw) 24(kg) 240(mm) 240(mm) 240(mm) 315(mm) 9 - 10(mm)
317599 375(kg) / 606(lbs) 2 20(kw) 24(kg) 240(mm) 240(mm) 240(mm) 315(mm) 9 - 10(mm)
