Hydraulic Retractable Thruster R450

HomeRetractable ThrustersHydraulic Retractable Thrusters
  • Description
  • Images

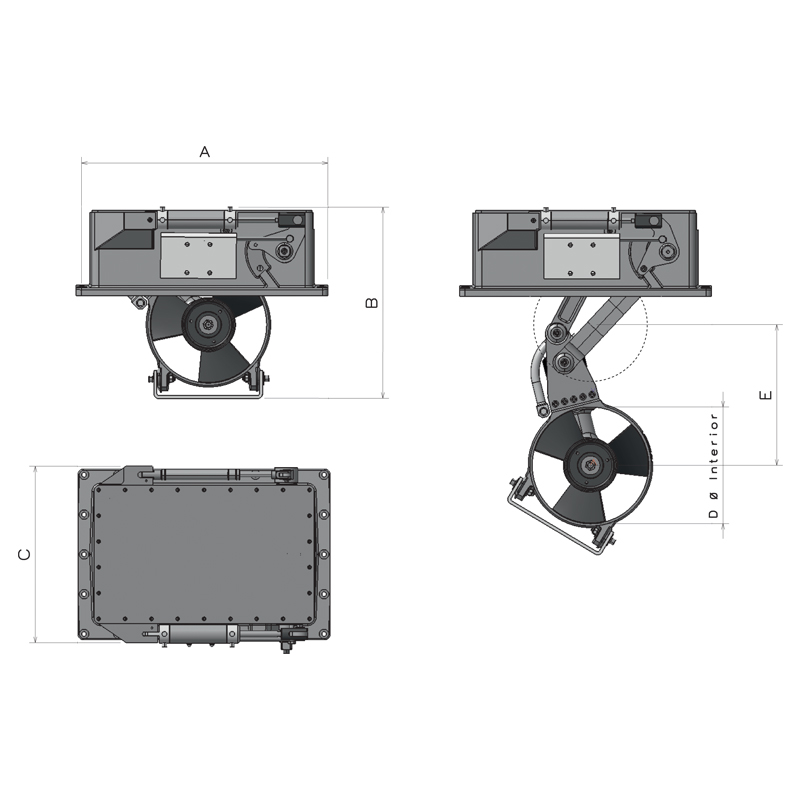

  • Drawings
  • Documents
  • 3D Models

Light & robust this thruster unit has been designed specifically for performance yachts, both sail & motor. With positive locking and a unique gas spring lifting system, the R450 can withstand the pounding that offshore performance boats endure.

Features
Power ratings (hp) 50/77
Thrust: 11 kg per kw
Max. hydraulic power (kw): 40
Hydraulic power requirements (up to):  Upon request
Power pack options: PTO
Hydraulic motor: Piston
Opening/ closing mechanism: Hydraulic & gas spring
Propellers: Duo, 5 blades
Weight (kg): 165
Code Model HP KW Flow Pressure Motor
317813 R450/34 50 34 110 LPM 210 B 34cc
317814 R450/40 65 40 170 LPM 170 B 40cc
317912 R450/50 80 50 200 LPM 180 B 50cc
