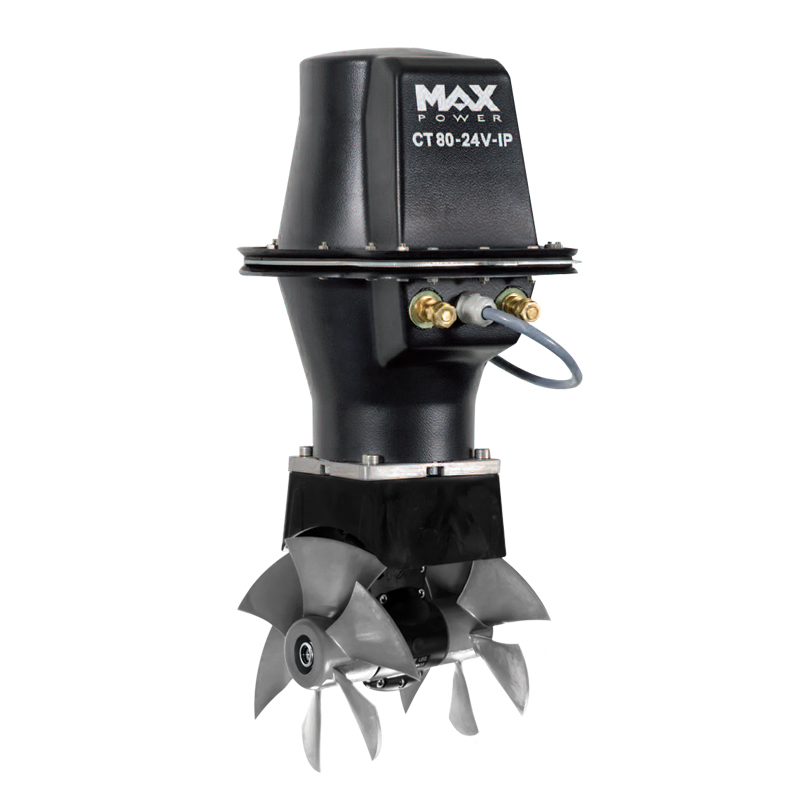

Ignition Protected Thruster CT80-IP
Home → Tunnel Thrusters → Ignition Protected Thrusters
- Description
- Images
- Drawings
- Documents
- 3D Models
Available in 12V or 24V, the CT80-IP is perfectly suited to motor boats and deep footed sailing yachts in the popular 25’-44’ size range. With its 185mm tunnel diameter and thrust rating of up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model, this powerful yet economic thruster integrates all the unique features common to the range.
Ignition protected thrusters are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part. This feature provides optimal ignition protection because it doesn't allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.
Unique Features
Ignition Protected and water resistant.
Easy to connect thruster. Robust metallic frame.
Unique composite drive leg design. See page 8 for full details.
High specification electric motors. See page 8 for full details.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

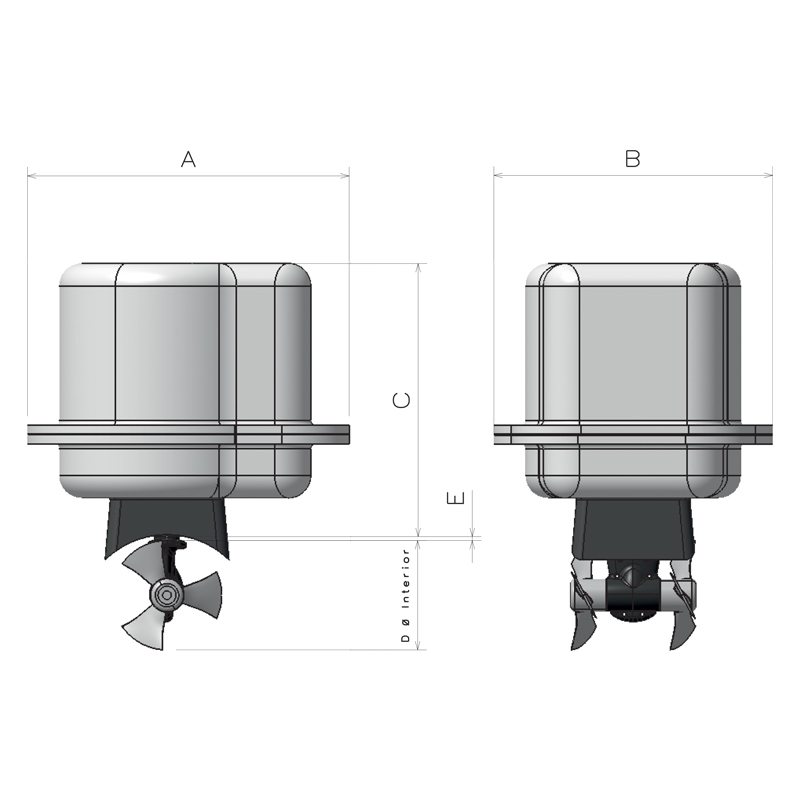

| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|---|
| 317613 | 12V | 75 / 165 (kg/lbs) | 2 | 4.79 / 6.4 (kw/hp) | 17.6 (kg) | 320 | 255 | 375 | 185 | 6 - 7 |
| 317614 | 24V | 83 / 182,6 (kg/lbs) | 2 | 5.28 / 7.1 (kw/hp) | 17.6 (kg) | 320 | 255 | 375 | 185 | 6 - 7 |
