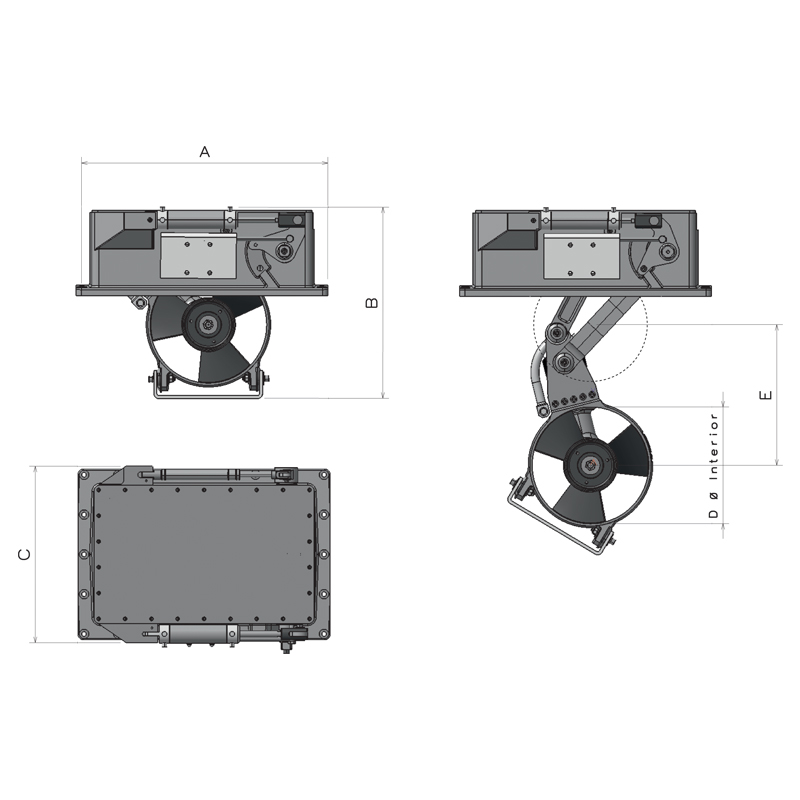

  • Drawings
  • Documents
  • 3D Models
  • Package

Benefiting from a control system redesign, the R200 is the smallest model in the Max Power RetractTM range. Designed for top end production boats, this hydraulic retractable thruster has long been installed in prestigious yachts ranging from 45 - 68’.

Features
Power ratings (hp) 10/17
Thrust: 10 kg per kw
Max. hydraulic power (kw): 13
Hydraulic power requirements (up to): 20 lpm/ 220 bar - 30 lpm/ 250 bar
Power pack options: PTO &24V
Hydraulic motor: Piston
Opening/ closing mechanism: Electric & manual
Propellers: Duo, 2 blades
Weight (kg): 35



*For further details on full package units, assemblies and components, please contact us.

317801 R200/6 Package Includes 317802 R200/8 Package Includes
317803 THRUSTER ASSEMBLY R200/6 317804 THRUSTER ASSEMBLY R200/8
312950 ELECTRONIC CONTROLLER VIP/R200 312950 ELECTRONIC CONTROLLER VIP/R200
318224 JOYSTICK VIP & RETRACT GREY 318224 JOYSTICK VIP & RETRACT GREY
316504 MAX POWER DISTRIBUTION BLOCK 316504 MAX POWER DISTRIBUTION BLOCK
313456 TANK 8Ltr WHITE COMPLETE (filter etc.) 313456 TANK 8Ltr WHITE COMPLETE (filter etc.)
35017 FUSE HOLDER T1 35017 FUSE HOLDER T1
35020 FUSE 200A T1 FOR THRUSTERS 35022 FUSE 315A T2 FOR THRUSTERS
318401 BATTERY CUT-OFF RELAY 24V 318401 BATTERY CUT-OFF RELAY 24V
316511 ELECTROPUMP BK8/8.5cc 316509 ELECTRO HYDRAULIC PUMP BK13/11cc
634136 MOTOR SUPPORT (2 PCS) 634136 MOTOR SUPPORT (2 PCS)
Code Model HP KW Flow Pressure Motor
317803 R200/6 10.72 8 22 LPM 220 B 6cc
317804 R200/8 16.08 12 30 LPM 240 B 8 cc
